Fixed Competitive Price for Canopy Generator Set 200kw cummins diesel generator for sale export to Croatia (local name: Hrvatska) Wholesale

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

The key to our success is "Good Product Excellent, Reasonable Rate and Efficient Service" for 200kw Diesel Generator for Sale,200kw Diesel Generator. We sincerely welcome close friends from all around the environment to cooperate with us over the foundation of long-term mutual benefits.

Fixed Competitive Price for Canopy Generator Set 200kw cummins diesel generator for sale export to Croatia (local name: Hrvatska) Wholesale

Short Description of 200kw cummins diesel generator for sale,with 200 kW / 250 kVA prime power,and 220 kW / 275 kVA standby power;Voltage:400 / 230 V or 380 / 220 V optional,Frequency:50 HZ,Speed:1500 / 1800 rpm optional.Diesel generator set with CUMMINS engine,and water cooled;Alternator is SHUANHUA,STAMFORD or MARATHON optional;Controller:KOMAP or DEEPSEA optional;We have different type generator,such as open type generator, silent / soundproof / quite type generator,trailer type generator,container type generator,and automobile type generator.Our partners are all famous diesel engine manufacturers such as Perkins,MTU,Volvo,Dongfeng Cummins,Chongqing Cummins,Yuchai of China,Shangchai,Weichai Deutz and so on.We have different brand diesel generator set,such as diesel generator set with CUMMINS engine,diesel generator set with PERKINS engine,diesel generator set with YUCHAI engine,diesel generator set with MTU engine,diesel generator set with CHINESE engine;We have different kW generator,20-50 kW generator,80-200 kW generator,200-480 kW generator,500-1000 kW generator,and 1000kw generator.We have different kVA generator,20-50kva generator,80-200kva generator,200-480kva generator,500-1000kva generator,1000kva generator.

200kw cummins diesel generator Technical Specification

Manufacturer:SHANDONG HUALI ELECTROMECHANICAL CO.,LTD
Genset Model:HL200GF
Frequency:50Hz
Speed:1500rpm
Voltage:400V
Standby Power:220kw/275kva
Prime Power:200kw/250kva
Genset Dimensions and Weights
OPEN  STYLE
Overall Size:2570*950*1520mm
Weight:1750kg

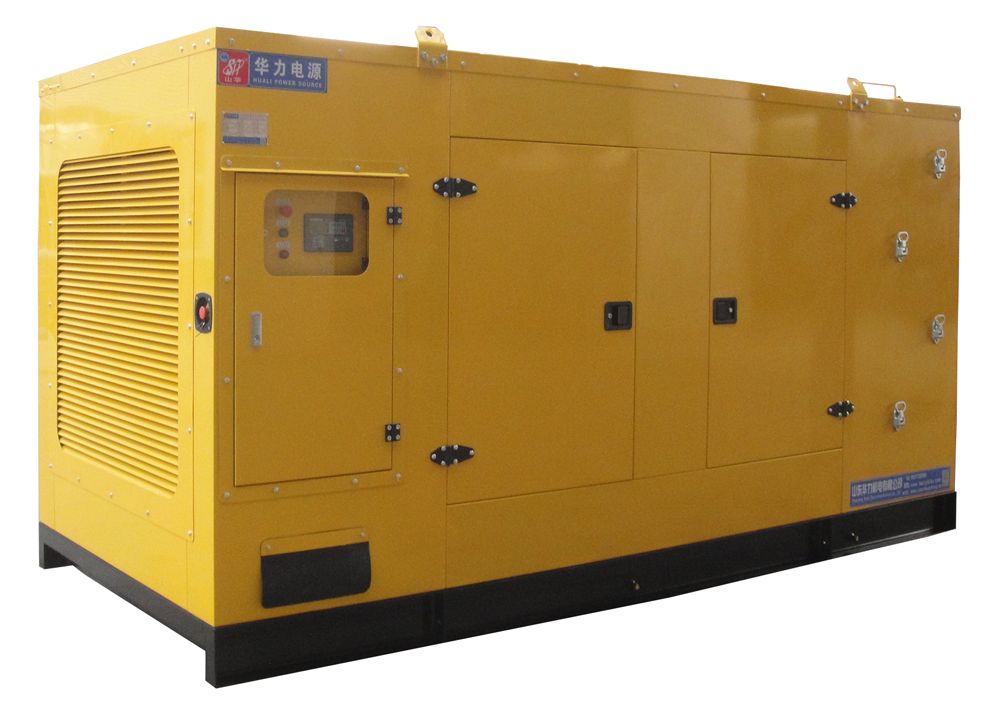

SOUNDPROOF STYLE
Overall Size:4490*1525*2250mm
Weight:3200kg
200kw Diesel Generator for Sale200kw GeneratorCummins Generator Engines

Diesel Generating Set Technical Specification

Manufacturer

SHANDONG HUALI ELECTROMECHANICAL CO.,LTD

Genset Model

HL200GF



Frequency

Speed

Voltage

Power

KW

KVA

50Hz

1500rpm

400V

Standby Power

220

275

50Hz

1500rpm

400V

Prime Power

200

250

Dimensions and Weights

OPEN  STYLE

Overall Size(L×W×H)

2570*950*1520mm

Weight(net)

1750kg


SOUNDPROOF STYLE

Overall Size(L×W×H)

4490*1525*2250mm

Weight(net)

3200kg



Voltage regulation:                                                                                                        ≥±5%

Voltage Regulation,Stead State:                                                                                 ≤±1%

Sudden Voltage Warp(100% Sudden Reduce):                                                          ≤+25%

Sudden voltage Warp(Sudden Increase):                                                                    ≤-20%

Voltage Stable Time(100% Sudden Reduce):                                                            ≤6S

Voltage Stable Time(Sudden Increase):                                                                     ≤6S

Frequency Regulation,Stead State:                                                                          ≤5%

Frequency Waving:                                                                                                         ≤1.5%

Sudden Frequency Warp(100%Sudden Reduce):                                                      ≤+12%

Sudden Frequency Warp(Sudden Increase):                                                               ≤-10%

Frequency Recovery Time(100%Sudden Reduce):                                                    ≤5S

Frequency Recovery Time(Sudden Increase):                                                            ≤5S



DIESEL  ENGINE  SPECIFICATION

Manufacturer

DCEC CUMMINS

Engine Model

6LTAA8.9-G2

Base Output Power(kW)

240

Standby Power(kW)

220

Engine speed(rpm)

1500

Displacement, total(L)

8.9

Number of cylinders

6

cycle

4-cycle

Bore*Stroke(mm)

114*145

Compression ratio

N/A

Low idle(rpm)

850-950

Torque(Nm)

1528

Piston speed(m/s)

7.25

Engine  weight,dry(kg)

650

Air intake way

Turbo

Air intake flow(L/sec)

N/A

Exhaust temperature(℃)

470

Exhaust flow(L/sec)

N/A

Coolant capacity-engine only (L)

11.1

Engine coolant flow(L/sec)

3.3

Lubrication system Min. capacity(L)

27.6

Max. oil temperature permitted in oil pan(℃)

121

Start Motor Voltage(V)

24





Fuel injection pump model

BYC PB pump with GAC governor

CONSUMPTION(L/h)

Standby power

58

100% prime power

53

75% prime power

39

50% prime power

27

25% prime power

15





ALTERNATOR  SPECIFICATION

Manufacturer

SHANDONG HUALI ELECTROMECHANICAL CO.,LTD

Alternator Model

HLF-200

Frequency

50 HZ

Rated Speed(RPM)

1500

Voltage Regulation

±5%

Prime Voltage(V)

400

Number of Phase

3

Connecting Type

3 Phase and 4 Wires

Power Factor

0.8

Protection Grade

IP21

Altitude

1000m

Exciter Type

Brush less,self-exciting

Insulation Class

H

Temperature Rise

H

TIF

50

THF

2%



CONTROL  SYSTEM

Work environment

Operating temperature:-20℃~60℃      Relative Humidity:95%

Operating voltage:DC24V  (range:18-30V,pressure:50V/5mm )

Description

Standard functions

Shutdown

Warning

Engine Control

Generator Monitoring

Generator Protection

Engine Monitoring

Clear Text Display



Loss of Speed Signal

Alternator Under / Over Voltage

Alternator Under/ Over Frequency

Mains Under / Over Voltage

Mains Under/ Over Frequency

Under / Over Speed

Low Oil Pressure

High Engine Temperature

Phase Sequence Electrical (Option)

Earth Fault (Option)

Alternator Under / Over Voltage

Alternator Under/ Over Frequency

Mains Under / Over Voltage

Mains Under/ Over Frequency

Under / Over Speed

Low Oil Pressure Pre-Alarm

High Engine Temperature Pre-Alarm

High/Low Battery Voltage

Over-current

Periodic maintenance



"Our enterprise insists all along the standard policy of ""product good quality is base of organization survival; client gratification could be the staring point and ending of an enterprise; persistent improvement is eternal pursuit of staff"" and the consistent purpose of ""reputation to start with, purchaser first"" for 200kw cummins diesel generator for sale. The product will supply to all over the world, such as: France,Austria,Reunion. We also ensure that your selection will be crafted with the highest quality and reliability. Please feel free to contact us for further information.
